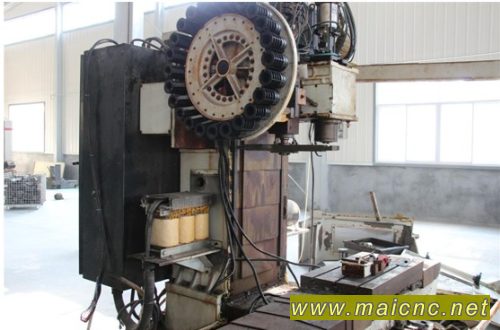

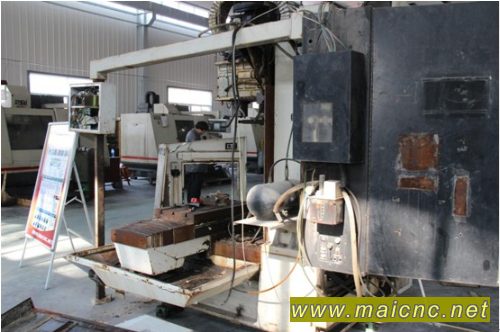

該設備屬于高速機， 正在修復中，準備更換的系統為西門子840D

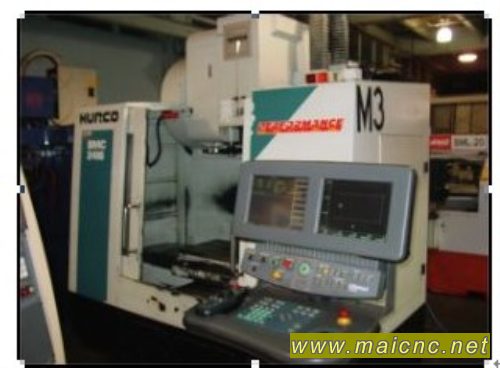

Hurco BMC-2416
Vertical Machining Center
Ref #: 3121
Model #: BMC2416
Mfg: 1999 installed 2000
Specifications:
Table ........................................... 29.5" x 15.7"
Max Load on Table ................... 760 lbs
Travels, X-Axis ........................... 24”
Travels, Y-Axis ........................... 16”
Travels, Z-Axis ........................... 22”
Main Motor ................................. 10 HP
Spindle Speed .......................... 80 - 8,000 RPM
Spindle Axis Torque/RPM ….. 100 ft-lb / 500 (30 min)
Spindle Taper ............................ CAT 40
ATC .............................................. 24 (Swing Arm)
Rapid Traverse ……….….……. 945 IPM (X,Y)
Rapid Traverse ……….….……. 590 IPM (XZ)
Max Thrust Rating …….….…... 1450 lbs. (X,Y) 2490 (Z)
Operating Dimensions ……….. 139" W x 135" D x 103" H
Shipping Dimensions ………… 89" W x 116" D x 96" H
Machine Weight …..………….. 9,040 lbs
Equipped With:
- Ultimax III Split Screen Conversational Control
- Graphics
- Floppy Drive
- Chip Auger
- All Manuals
|
